Elcometer

Quality Control Instrumentation

Adhesion Testers

Cross Hatch Adhesion Tester

• Elcometer 107, 1540, 1542 Cross Hatch Cutters
• Instant assessment of the quality of the bond to the substrate - fast, low cost, visual comparison method
• Ideal for paint and powder coatings up to 250 microns - 1, 1.5, 2, 3mm spacing - 6 or 11 teeth
• Conforms to ISO, AS, ASTM, BS, EN

Pull Off Adhesion Tester

• Elcometer 106,506,508,510 Pull Off Adhesion Tester
• Easy to operate, uses re-usable dolly - 10-50mm
• Fully portable, measure on small, curved, flat surface
• Range: up to 100MPa, Accuracy: ±1% full scale
• Quick connect coupling - field or lab tests
• Conforms to ISO, AS/NZS, ASTM, BS, EN, NF, DIN

Climatic Condition Testing

Climate Condition Monitor

• Elcometer 319 Dew Meter - Standard & Top models
• Air Temperature, Relative Humidity (RH), Surface Temperature, Dewpoint Temperature, Data Logger
• DeltaT-difference between dewpoint & surface temp
• Bluetooth / USB output to free ElcoMaster Software

Hygro Thermometer

• 8706 Hygro Thermometer - Air Temperature, Relative Humidity (RH), Dewpoint Temperature, Wet Bulb
• M20 Low Cost Hygro Thermometer – RH & Temp
• Elcometer 116 Whirling / Sling Hygrometer
• Protimeter BLD7751 Hygromaster 2- download to PC

nfra Red Temperature

• Elcometer 214L, 8889 Infrared Temp Guns
• Non contact temperature gauges with laser pointer
• Range: -40 to 500°C for the most popular 8889
• Accuracy: ±2%, Resolution: 0.1°C, 10:1 D:S

Temperature

• Elcometer 113, 212, 213-2 Temperature Gauges
• Air, Surface, Liquid Temperature, Limpet Magnetic
• Range: -50 to 1370°C - various probe options
• Accuracy: ±1% or 1°C, Resolution: 0.1 to 1°C

Coating Thickness Gauges

Dry Film Thickness – Digital

• Elcometer 456 Coating Thickness & 311, 415, 355
• >70 rdgs/min, new scan mode >140 in Auto Repeat
• Separate, Miniature, HighTemp, Armoured Probes
• Accuracy: ±1 to 2%, Range: 0 - 31mm, Trend Graph
• USB / Bluetooth output: 150,000 rdgs, 2500 batches
• Upgradeable Firmware, 2 yr Warranty, IP64 rating
• Conforms to ISO, AS, ASTM, BS, DIN, SSPC, IMO

Hygro Thermometer

• Elcometer 500 Coating Thickness Gauge for ultrasonic non-destructive coating thickness measurement on Concrete & other similar substrates
• Accuracy: 2%; Range: 150µm to 10mm
• 60 rdgs/min, >140 in scan mode
• USB / Bluetooth output: 100,000 rdgs, 1,000 batches
• Signal strength indicator- accurate & reliable readings
• Rugged, ergonomic probes - field replaceable

Dry Film Thickness – Digital

• Elcometer 121/4 Paint Inspection Gauge (PIG), 141
• Used for non metallic substrates eg wood, plaster, plastic and for determination of multilayer coatings.
• Conform to ISO, AS, ASTM, BS, DIN, ECCA, EN

Dry Film Thickness – Mechanical

• Elcometer 211 Magnetic DFTG - Banana Gauge
• Ideal for hazardous and dangerous environments
• Can be used under water Accuracy: ±5%, 0-1000µm
• Conforms to ISO, AS, ASTM, BS, DIN, SSPC, NF

Dry Film Thickness – Standards

• Elcometer 990 Calibration Foils / Shims to ISO
• Accuracy: 1%, Range: 12mic to 20mm
• Used in the laboratory and on site
• Ideal method for accurately calibrating DFT Gauge
• Used with 990 Zero Test Plates

Dry Film Thickness - Software

• Free ElcoMaster for 456,224,319,130,MTG8,480,500
• User friendly, create professional reports in seconds
• For PC and Mobile use - customised reports for all applications - insert logos, images, GPS co-ordinates
• Save data to Cloud for access anywhere in the world

Wet Film Thickness Combs

• Elcometer 112, 115, 3236, 3238, 154 WFC’s
• Quick, easy method of measuring coating thickness
• Plastic, Aluminium or Stainless-Steel Combs
• 2, 4 or 6 sided combs
• Conforms to ISO. Range: 25 to 3000µm

Wet Film Thickness Wheels

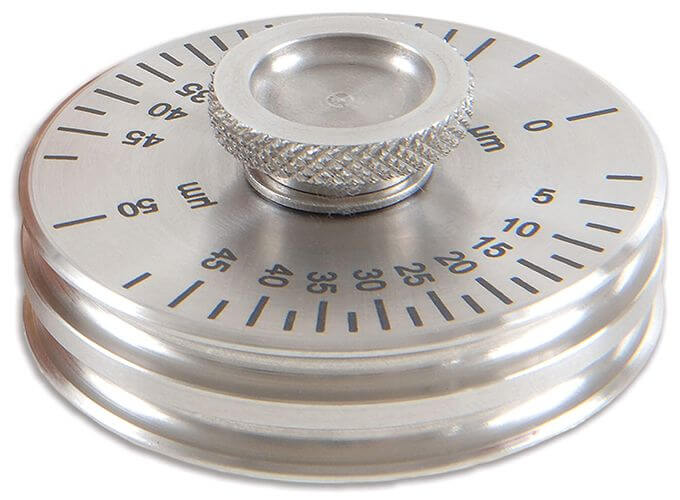

• Elcometer 3230 Wet Film Wheels / Coil Coating
• high precision, accurate and easy to use
• Set of three wheels, central wheel is of a smaller diameter and is eccentric relative to the two outer wheels – Stainless-Steel
• Conforms to ISO / ASTM. Range: 0 to 1000µm

Concrete Testing

Concrete Covermeters / Rebar Locators

• Elcometer 331 Basic, Standard, Top, Kolectric 8022
• Rebar detection, orientation, depth, diameter
• Also potential for corrosion with Half Cell
• Download readings to PC, Conforms to ISO
• Accuracy: ±1mm, Range: 0 to 180mm

Concrete Adhesion

• Elcometer 506, 510 (Automatic)
• Elcometer 106/6 adhesion of Coatings on Concrete
• Special 50mm diameter dollies for rough surfaces
• 106/6 : Hand operated, 506,510:Smooth Pull Rate
• Range: 106/6: 0 to 3.5 MPa; 506 & 510: 0.3 to 4 MPa

Concrete Hardness / Test Hammer

• Low Cost HT225A Concrete Compression Test Hammer / (Schmidt equivalent) – with certificate
• Elcometer 181 Mechanical,182 Digital Test Hammer
• Quick & easy to use, 182 downloads readings to PC
• Non-destructive method of testing concrete insitu

Concrete Moisture

• Concrete Moisture Encounter (CME5) specifically designed for flooring industry - no drilling required
• Range: 0 to over 6% Depth: 12.5mm non-destructive
• DM4A Moisture Meter digital non-destructive meter
• Moisture Measurement System MMS for RH as well

Coating Physical Test Equipment

Abrasion, Washability & Brushability

• Elcometer 1720 Abrasion, Scrubbing, Washability
• To test paint, lacquers, inks, coatings & much more
• Wide range of tools available- flat & curved samples
• Elcometer Taber 5750 Linear Abraser and 5135 & 5155 Abrasers - regarded as the industry standard
• Conforms to ISO, AS, ASTM, DIN, EN, GME, PSA

Balances / Density

• Elcometer 8720 KB Balance
• Low cost easy to use. Range 0 - 10100g
• Elcometer 1800 Densimeter / Picnometer / Specific Gravity Cup - 50cc or 100cc, Optional Certificate
• Stainless steel precision instrument for determining the specific weight of paints and similar products

Drying Time & Permeability

• Elcometer 5100 Payne Permeability Cups
• Used to determine the permeability of films of paint, varnish, plastic, cellophane, etc

Elasticity & Resistance Deformation

• Elcometer 1510, 1500, 1506 Mandrel Bend Testers
• Elcometer 1620 Cupping Test
• Elcometer 1615 Variable Impact Testers
• Used for testing elasticity, adhesion, elongation & cracking of paint on sheet metal & impact resistance
• Conforms to ISO,AS,ASTM,BS,DIN,ECCA,JIS,NFT

Film Application & Test Charts

• Elcometer 4340 Motorised Automatic Film Applicator
• Elcometer 3520 Baker Film Applicators, 4360 & 4361 Spiral Bar Coaters / Draw Down Bars
• Cube Film Applicator, Multiple Gap, with reservoirs
• Wide range - thicknesses & widths, Vacuum Tables
• Leneta / Opacity Test Charts – full range available

Fineness of Grind Gauges

• Elcometer 2020 Hegman North Grind Gauge
• Elcometer 2050 High Precision Grindometer
• Elcometer 2070 NPIRI Fineness of Grind Gauges
• Used to determine particle size and fineness of grind of many materials, including: paints, pigments, inks, coatings, chocolates or other similar products
• Conforms to ISO, AS, ASTM, DIN, EN, FTMS, NF

Distance & Levels

Laser Distance Meters

• Leica Disto Laser Distance: D1, D110, D2, X3, X4, D510, D810 & S910 - Accuracy: ±1mm
• Range: 0 to 40, 60, 100, 120, 150, 200 & 300m
• Pythagoras function - heights, Tilt sensor for angles
• D1, D110, D510, D810, S910- Bluetooth connection
• Shortcut keys for addition, subtraction, area, volume
• Digital Pointfinder (4X zoom), large 2.4“ colour display
• NEW Intrinsically safe NVl00-1S - hazourdous envir.

Levels

• Digital Inclinometer 360° Angle Gauge Module measures Angles in Degrees or Slopes in %
• Various rail lengths: 250, 600, 1000mm
• Also Module supplied on it’s own
• Accuracy to 0.1 for all Angles
• LCD display operates through 0 to 360°

Gloss

Glossmeters

• Elcometer 480 Gloss Meters are small, robust & ergonomic, easy to use, highly accuracy, repeatable & reproducible - 3 - 10 readings per second
• Multiple angles; 20°, 60°, 85° - 40,000 reading memory in up to 2,500 batches, USB & Bluetooth®
• Auto calibration tile recognition via RFID

Haze / Distinctness of Image (DOI) / Goniophotometer

• Rhopoint Novo-Gloss IQ Image Quality, Haze, Distinctness of Image (DOI), Goniophotometer
• The instrument profiles complete specular reflectance and calculates gloss, peak specular reflectance, Distinctness of Image (DOI) and Reflection Haze
• The Novo-Scan IQ can achieve similar results to the Wavescan at a fraction of the price

Shade / Reflectometer

• Rhopoint Novo-Shade Duo+ Reflectometer/Opacity
• Measures shade and opacity with 45/0° geometry
• Automatic calibration mode. 2 year warranty
• Includes Novo-Soft™ for download to computer
• Conforms to ISO, ASTM, DIN & FTMS

Colour

• Elcometer 6210 RAL Colour reference charts - Colour collection of RAL CLASSIC Colours
• Elcometer 6300 Colour Cabinet - view samples to maintain colour consistency and quality
• Conforms to ISO, AS, ASTM, BS, SAE, TAPPI, NF

Hardness

Hardness of Metals

• TH5100 Integrated Portable Hardness Testers
• Automatic identification of impact test direction
• Compact, high accuracy, wide measuring range and simplicity of operation with digital readout
• Hardness Scales - HLD, HB, HRC, HRB, HV, HS

Hardness of Non Metals

• Elcometer 3101 Barcol Impressor Portable Hardness Tester – aluminium, copper, brass, plastic, fibre-glass
• Shore A & D, TH5431 Shore Durometers / Hardness Testers for soft & hard rubber & plastic

Concrete Hardness / Test Hammer

• Low Cost HT225A Concrete Compression Test Hammer / (Schmidt equivalent) – with certificate
• Elcometer 181 Mechanical,182 Digital Test Hammer
• Quick & easy to use, 182 downloads readings to PC
• Non-destructive method of testing concrete insitu

Hardness – Coatings

• Concrete Moisture Encounter (CME5) specifically designed for flooring industry - no drilling required
• Range: 0 to over 6% Depth: 12.5mm non-destructive
• DM4A Moisture Meter digital non-destructive meter
• Moisture Measurement System MMS for RH as well

Inspectors Accessories

Coatings Defects Manuals / Publications

• Elcometer Fitz Atlas 2 of Coating Defects - reference manual with over 180 colour photographs to help the site inspector identify coating failures

Magnifiers & Microscopes

• Concrete Moisture Encounter (CME5) specifically designed for flooring industry - no drilling required
• Range: 0 to over 6% Depth: 12.5mm non-destructive
• DM4A Moisture Meter digital non-destructive meter
• Moisture Measurement System MMS for RH as well

Inspectors Accessories - Other

• Elcometer 147 Weld Gauge - angle of preparation, high - low, fillet weld throat & length
• Elcometer 144 Paint Safe Marker Pens

Inspectors Accessories - Other

• Elcometer 132 Torch / Flashlight - Intrinsically safe
• Elcometer 143 Crack Width Ruler - simple low cost
• Pocket Real Estate Master calculator

Laboratory Instruments

Oven Temperature Logger

• Elcometer 215 Oven Temperature Data Recorder including Software - 260k readings, Thermal Barrier
• Easy to use, measure & record the oven temp profile
• Large display for easy menu-driven operation
• Displays result of every stored batch, incl Cure-index
• Accuracy: 1°C, Res : 0.1°C, Range: -200 to 1300°C
• USB connection to FREE ElcoMaster Software

Measuring Instruments

Anemometer

• 8910, Elcometer G410 Anemometer / Air Flow / Velocity / Air Speed Meter
• Accuracy: 2%, 0.6°C. Resolution: 0.01ms, 0.1°C
• Range: 0.4 to 35 ms, -10 to 50°C
• 8910 - Wind Speed, RH, Dew Point, Windchill, Altitude, Heat Index, Barometric Pressure

Vibration

• TV7120 and TV7126 Portable Pen Type Vibration Tester - ideal for quick test of bearings and gears
• TV7231 Portable Vibration Tester with full graphic LCD & Spectrum Analysis, 3 display modes, RS232 to PC

Metal Detection / Locators

Rebar Locators and Covermeters

• Elcometer 331 Concrete Covermeter – Basic, Standard & Top, Kolectric 8022 CoverMeter
• Allows identification of location, orientation, depth and diameter of rebar & the potential for corrosion
• Conforms to ISO, AS, ASTM, BS, DIN, TR, UNI

Wall Tie and Stud Locators

• MT6 Metal Locator / Detector finds non-ferrous & ferrous metal.
• Depth: 152mm & indication of depth
• MultiScanner Pro SL Stud Locator

Industrial Metal Detectors

• Elcometer P500 Imp Box locator. Depth: 1 meter
• Simple to use and very rugged
• Detects Manholes, Valve Boxes, Stakes, Nails

Pipe and Cable Locator

• Leica DD220 & DD230 Smart Utility Locators
• Industry-leading digital signal processing to identify underground assets
• Scalable & designed with Bluetooth technology, providing a wire-free connection to mobile devices

Inspection Kits

Digital Inspection Kits

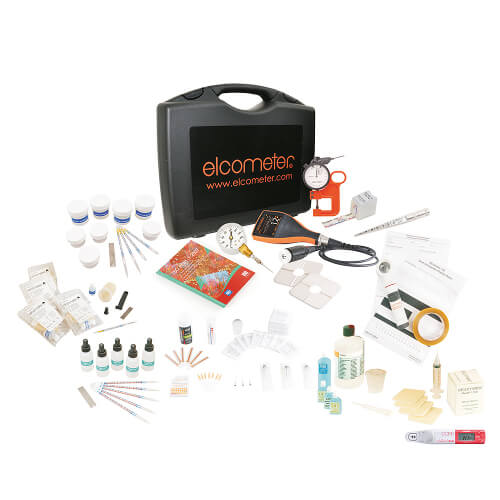

• Elcometer Digital Basic and Top Kits – 4 models
• Portable, and conveniently stored in a hard, plastic case- Top models download readings to ElcoMaster
• Elcometer 319 Climate Gauges with logging
• Elcometer 224 Surface Profile Gauges
• Elcometer 456 Coating Thickness Gauges
• Separate models enable you to carry out multiple tests at a time

Protective Coating Inspection Kits

• Elcometer Protective Coating Inspection Kits - 6 Kits
• Comprehensive kit incorporating all key gauges and inspection accessories conveniently stored in a hard, plastic case.
• Measurement options include: Material Thickness, Surface Inspection, Weld Inspection, Surface Cleanliness, Surface Profile, Climatic Conditions, Coating Thickness, Adhesion & Pinhole Detection

Elcometer Blasting Inspection Kit

• The Elcometer Blasting Inspection Kit is a surface preparation inspection kit providing a range of inspection equipment to test surface profile and surface contamination of blasted profiles.
• Other Kits include: Elcometer Protective Inspection Kit for Hazardous Areas, Surface Contamination, Coatings on Concrete Inspection Kit

Qualicoat Powder Coating Inspection Kit

• The Qualicoat Organisation brings together the ideals of several national coating associations into one quality label for the powder coating applied to aluminium architectural applications
• Also a Powder Coating Inspection Kit
• Other Kits include: Automotive Inspection, Elcometer Duct Deposit Measuring System

Moisture

Building Materials

• Surveymaster Moisture Meter is a Digital dual mode unit - Search (20mm deep) & Measure (Pin) options
• Moisture Encounter Plus (ME5) Moisture Meter
• Range: from 5 to 30% actual Moisture % 0 to 100% Relative Scale, Depth: 20 & 30mm

Wood

• Timbermaster Moisture Meter is a simple to use digital pin type moisture meter with Heavy Duty probe
• It has 8 in-built calibration scales for ease of use
• Range: 6% to 90% Resolution: 0.1% Depth:10/30mm
• DM4A, ME5, Mini 2000, Digital Mini Moisture Meter

General Purpose

• Popular Low Cost Mini 2000 Pin Moisture Meter
• Speedy Ashworth Calcium Carbide Moisture Meter
• Moisture Measurement System (MMS) Dampness Diagnosis Kit - Measure, Search, Hygrometer, Infrared Mode, USB output and Logging function

Concrete

• Concrete Moisture Encounter (CME5) specifically designed for flooring industry - no drilling required
• Range: 0 to over 6% Depth: 12.5mm non destructive
• DM4A Moisture Meter digital non-destructive meter
• Moisture Measurement System MMS for RH as well

Paper / Cardboard

• DM4A Moisture Meter - digital non destructive universal moisture meter for measuring moisture in paper, cardboards, also wood, building materials
• Range: 0-50% (adjust.) Res: 0.1%. Depth: 30mm
• Also RS232 Output to PC

Agriculture / Bales / Tobacco / Grain

• Digital Balemaster Meter with 600mm probe for Bales
• Very popular in the tobacco industry as well
• Grainmaster "i2" Digital Moisture Meter with Grinder
• Accurate, repeatable, and pre-programmed with 15 crop calibrations, 1year warranty

Non Destructive Testing NDT

Ultrasonic Flaw Detection Gauges

• FD700DL - small, powerful, fast, accurate hand-held flaw detectors - ideal for weld inspection & forgings
• A & B-Scan displays to flaw detection modes such as TRIG, DAC, TCG, Flank and Peak
• Large data storage with multiple formats: Alpha numeric grid and sequential w/auto identifier

Corrosion / Precision Thickness Gauges

• CG70, CG100 Corrosion Thickness with A & B scans
• Range: 500mm, High speed scan mode: 32 / second
• PTG6, PTG8, PG70ABDL- 0.01or 0.001mm resolution
• Range: 0.15 to 25.4mm, ideal for thin materials
• A, B scans, Data Logging, Scan Mode, Adjustable gain, Limit Alarm, Gates, Differential mode

Pinhole / Porosity Detection

Sponge / Pinholes

• Elcometer 270 Sponge / Pinhole Detector - 9 & 90V
• High quality, low voltage detector - coating <500μm
• Accessories: sponge sizes, roller wands, telescopic
• Inspection Kit with all accessories available
• Conforms to ISO, BS, EN, ASTM, NACE, RP

Spark / Holiday

• Elcometer 266 & 280 High Voltage Holiday Detector
• 3 ranges: 0 to 5, 15 or 30kV, extra safety features
• Accessories for various applications – rolling springs for external pipeline inspection, extension handle
• 280 – ideal for pipelines – no signal return cable req.

Surface Preparation

Surface Profiles – Blasted

• Elcometer 224 Digital Basic, Top - Bluetooth / USB link to ElcoMaster – measure on convex surfaces
• Elcometer 123 Analogue Surface Profile Gauge
• Elcometer 122 Testex Tape & 124 Dial Gauge
• Elcometer 125 Comparators, 119 Pipe Pit Gauge

Surface Cleanliness – Soluble Salt Profiler

• Elcometer 130SSP Soluble Salt Profile Salt Meter
• Generates full colour salt density maps in 2D or 3D
• Gives you a Bresle equivalent reading – link to PC
• Elcometer 130 Salt Contamination Meter
• Soluble Salt Meter SSM - easy use, no consumables

Surface Profiles – Machined / Roughness

• TR3110/3200 Portable Digital Machined Roughness
• Accurate, portable, hand held, pocket sized
• Elcometer 7062 Marsurf Surface Roughness Tester with various pickup extensions and software
• Elcometer Rubert and Rugotest Comparators

Surface Cleanliness

• Elcometer 138 Bresle Kit & Elco 135 Bresle Patches
• Elcometer 134 CSN- Chlorides, Sulphates & Nitrates
• Elcometer 128 Pictorial Surface Stds, Amine Blush
• Elcometer 142 Dust Tape Test Kit to ISO 8502-3

Ultrasonic Material Wall Thickness

Low Cost popular models

• TT2110, TT2130, SA40 Ultrasonic Wall Thickness
• Popular hand held digital instruments to measure material thickness of materials from one side only
• Accuracy: ±1%. Range: 0.8 to 225mm
• Resolution: 0.01mm, Download to PC with TT2130
• High Temp and various frequency probes available

Surface Cleanliness

• Elcometer Ultrasonic Material Thickness Gauges MTG 2, 4, 6DL, 8BDL downloads to ElcoMaster
• Accuracy: ±0.01mm. Range: 0.63 - 500mm
• Echo to Echo mode for measuring thru’ coatings
• Easy to use menu driven - wide range of transducers
• MTG8BLD – B-Scan cross sectional display

Viscosity and Consistency

Viscosity - Flow and Dip Cups

• Elcometer Viscosity Cups: Quick, easy, low cost method, measure consistency of paints, varnishes
• Ford 4 most popular, ISO, ASTM, FORD, AFNOR, NFT, DIN, NF, EN, NBN, BS all available
• Frikmar, Zahn, Shell, Lory, Daniel Flow cups
• Viscosity Oils for calibration available
